SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Name: SSMB Female RF Coaxial Connector Compatible with RG178U Cable
Brand: SIPU
Price: 1 USD

Quality SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable wholesale

Brand Name : SIPU

Model Number : SSMB-K2Y

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 50

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Packaging Details : master carton

Supply Ability : 100000pcs/year

Delivery Time : 5-8week days

Product name : SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Durability : 500 times

Contact Now

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Product Overview

The SSMB series is a miniature push-in locking RF connector known for its compact size, light weight, fast and convenient connection, and strong shock resistance. It is internationally compatible with similar standard products, making it a reliable choice for global applications.

Applications

Electronic instruments

Radio communication equipment

Compact RF modules and devices

Product Features

Push-in snap-lock design for quick and secure connection

Compatible with RG178/U coaxial cable

Small size and lightweight

High connection reliability and ease of use

Good resistance to vibration and mechanical stress

Product Specifications

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Important Technical Parameters

Electrical property			Temperature range	-55～+155℃
Characteristic impedance		50Ω	Frequency range	DC-3GHz
Dielectric withstanding voltage		500V	VSWR	≤1.5
Insulation resistance		≥1000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

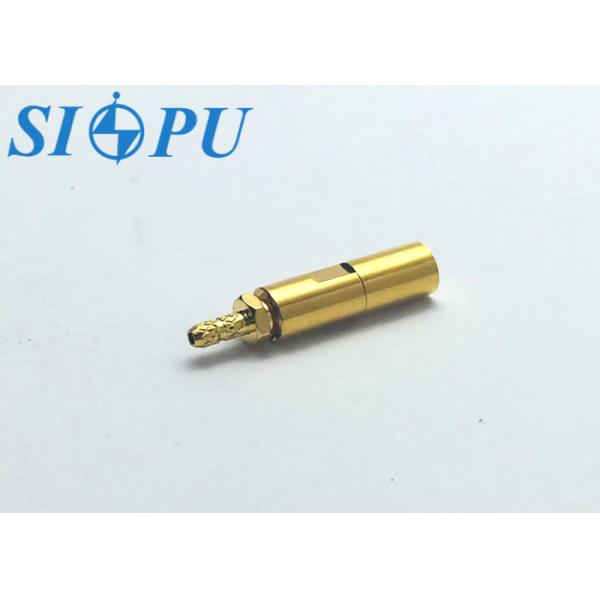

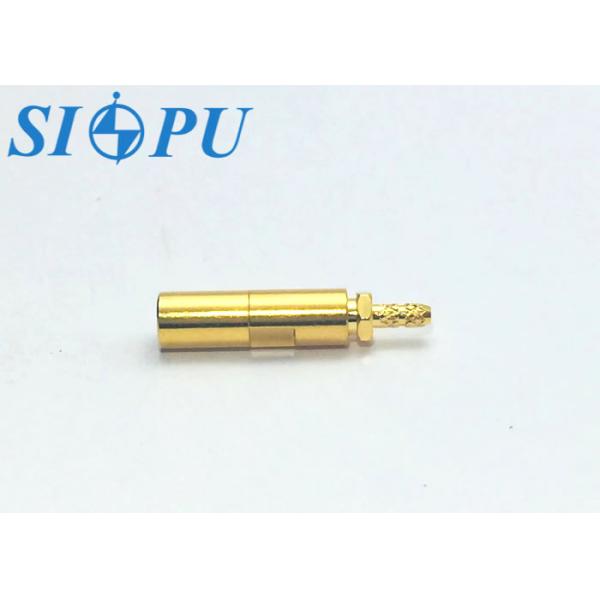

Product Image Gallery

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Product Tags:

Female SSMB Connector

Coaxial SSMB Connector

RG 178/U Cable SSMB Connector

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable Images
